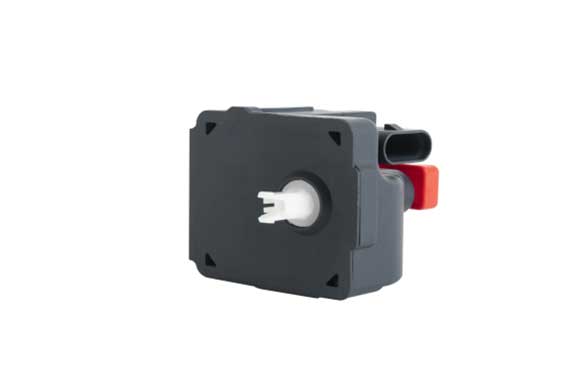

Mechanical Lock

Mechanical Lock

Mechanical Properties

Mechanical life: ≥60000 (DC12V POWER-ON 0.05s, power-off 10s)

Thrust: ≥450g(Energized DC 12V)

Retentivity:≥700g

Electrical Performance

Rated current: 3.2A

Rated voltage:12V±5%

Activation time : ≥0.05s

Power-on sustaining: 0.2s Max

Insulation resistance: >50MΩ(DC500V)

Temperature rise: ≤85℃(power-on 0.05s,power-off 10s)

Withstand voltage: DC550V 50/60Hz 1min

Raw Material

Shell material: thermoplastics, flame retardant grade UL94V-0

Environmental Performance

Temperature:-40℃~+85℃

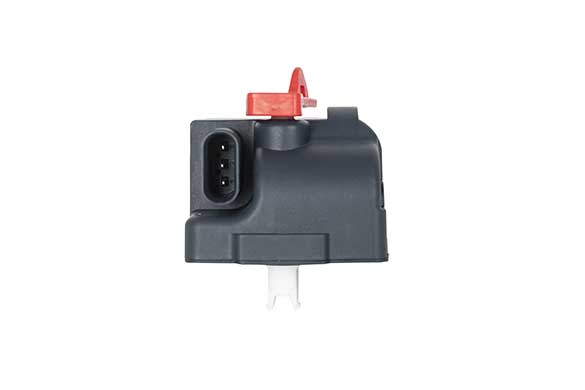

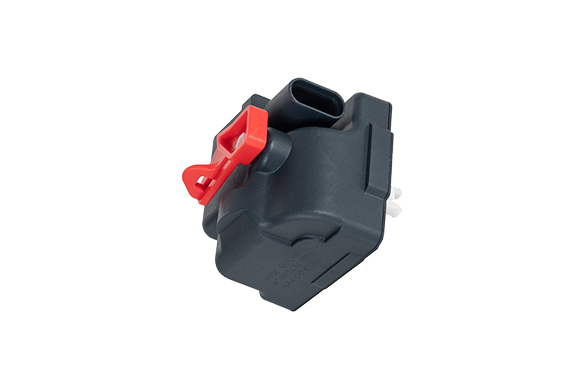

Type 2 Hella Lock Features

Conform to the provisions and requirements of IEC62196-2 2016.. Applicable to all Type2 electric vehicle charging sockets, Firmly locking the charger on the installation backplane can prevent theft. high anti falling safety performance, let you charge at ease.


Mechanical pulse control is adopted, also can add control board to achieve a long power supply mode.


Use ultrasonic welding process, with small size and beautiful appearance.


Have signal feedback function and manual emergency unlocking function. In case of accident, manual emergency unlocking is also available.


Special internal waterproof protection performance,protection grade achieved IP54. The security performance of the lock will not be reduced even in a very bad environment or special circumstances.


Reliable material, flame retardant, pressure resistance, abrasion resistance, impact resistance and high oil resistance.



Application of Type 2 Hella Lock

Apply to Vehicle

For Tesla model3, for Tesla Model S, for Tesla Model X, for BAIC EU-Series, for BYD Yuan/S2 EV, for BYD e5, for Chevrolet Volt, for Mia, for Mia Electric Van, for Mitsubishi OUTLANDER PHEV, for Nissan NV200 SE Van, for Nissan leaf, for SAIC Baojun E-Series, for SAIC Rorwe Ei5 EV, for BMW 530e/Le, for Renault Zoe, for Hyundai Kona EV, for BMW i3, for BYD Tang PHEV, for Chery eQ EV, for Toyota Prius PHEV, for Volkswagen e-Golf, for Geely Emgrand EV, for Great Wall Ora R1 EV


Application in area

Commercial EV Charging/Workplace EV Charging, Hotels EV Charging, Home/Residential EV Charging, Public EV charging


AG ELECTRICAL EV Portable Charger acquires all safety and production certificates in electrical filed, IEC62196-2



Type 2 Hella Lock Parameter

Product Type

EV Electronic Lock

Rated Current

3.2A

Rated Voltage

12V±5%

Warranty

12 months

Certificate

IEC 62196-2

Packaging Details

Standard export wooden case or carton. Or as customer requirements

Delivery Time(days)

Within 15days, if quantity>500,to be negotiated
