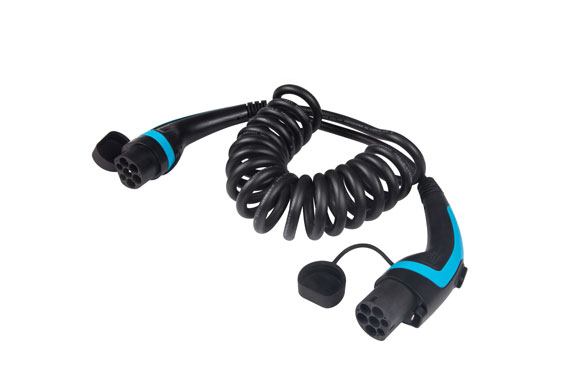

GB/T-GB/T Charging Mode3 Cable

GB/T-GB/T Charging Mode3 Cable

Mechanical Properties

Mechanical life: no-load plug>10000times

Impact of external force: can afford 1m drop and 2t vehicle run over pressure

Electrical Performance

The rated current: 16A, 32A

The rated voltage: 250V

Insulation resistance: >1000MΩ(DC500V)

Pins temperature rise:<50K

Withstand voltage: 2000V

Contact impedance: 0.5mΩMax

Applied Materials

Shell Material: thermoplastics, flame retardant grade UL94-V0

Pin: Copper alloy, silver

Environmental Performance

Operating temperature: -30℃-+50℃

GB/T-GB/T Charging Mode3 Cable Features

  • Conform to the provisions and requirements of GB/T 20234.2-2015 & 62196-2 IEC 2010 SHEET 2-lle.

  • Product assembly meet GB/T 20234.2-2011 Charging Mode3 connection method B2.

  • Using riveting pressure process with none screw, have a beautiful appearance. Hand-neld design conform to the ergonomic principle, plug conveniently.

  • Nice appearance, hand design to prevent accidental direct contact with hands.

  • Excellent protection performance, protection grade achieved IP55 of plug (working condition) High security.



GB/T-GB/T Charging Mode3 Cable Parameter

Product TypeRated Current/VoltageCable Specifications
AG-GBAC-CZ16P16A250V3X2.5mm2+2x0.75mm2
AG-GBAC-CZ32P32A250V3X6mm+2x0.75mm?
